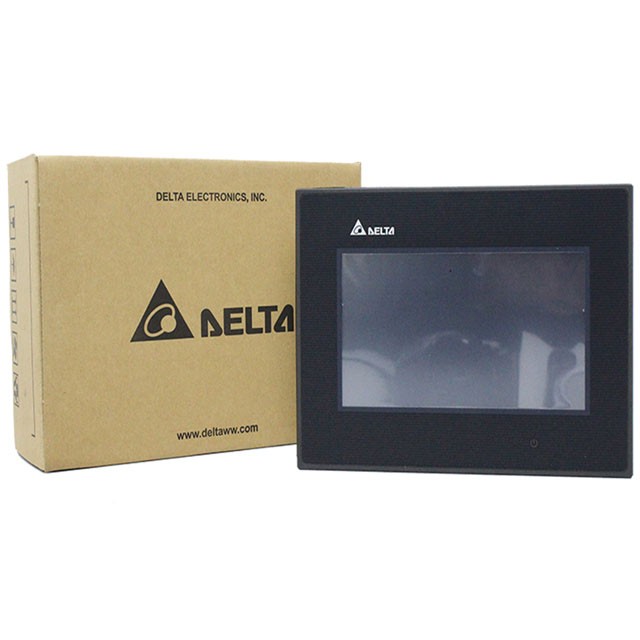

Delta HMI 10.4″ DOP-B10S615

Product Name: Delta HMI 10.4 inch (Touch Screen)

Brand Name: Delta

Series: DOP-B Series

Model: DOP-B10S615

Programming Software: DOP-Soft

PC to DOP-B Series HMI Communication Cable: Printer Cable

Made in Taiwan

One Years Warranty

Specification:

MODEL	DOP-B10E615
Display Type	10.4″ TFT LCD (65536 colors )
Resolution	480 x 272 pixels
Backlight	LED Back Light (less than 20,000 hours half-life at 25)
Display Size	95.04 x 53.856mm
Operation System	Delta Real-Time OS
MCU	32-bit RISC Micro-controller
NOR Flash ROM	Flash ROM 8 MB (OS System: 2MB / User Application: 6MB)
SDRAM	64Mbytes
Backup Memory	N/A
Buzzer	Multi-Tone Frequency (2K ~ 4K Hz) / 85dB
USB	1 USB Slave Ver 2.0
COM1	RS-232(supports hardware flow control)RS-422 RS-485
Cooling Method	Natural air circulation
Safety Approval	CE / UL
Waterproof Degree	IP65 / NEMA4
OperationVoltage	DC +24V (-10% ~ +15%) (please use isolated power supply)
Voltage Endurance	AC500V for 1 minute (between charging (DC24V terminal) and FG terminals)
Power Consumption	1.7W
Backup Battery	N/A
Backup battery life	N/A
Dimensions(W) x (H) x (D)mm	129 x103 x 39
Panel Cutout(W) x (H) mm	118.8 x 92.8
Weight	230g

DOP-B Series

The DOP Series Human Machine Interface (HMI) provides various touch screens with multiple dimensions and colors. It also offers fast and convenient control functions for industrial automation machines. In addition, Delta Windows-based and user-friendly DOPSoft Screen Editor and Programming Software configure the whole DOP Series. With DOPSoft, users can quickly edit images and graphs and easily set suitable communication protocols. More applications can be created, edited, downloaded, and uploaded.

Please Contact for Programming Help:
