Photo Electric Switch

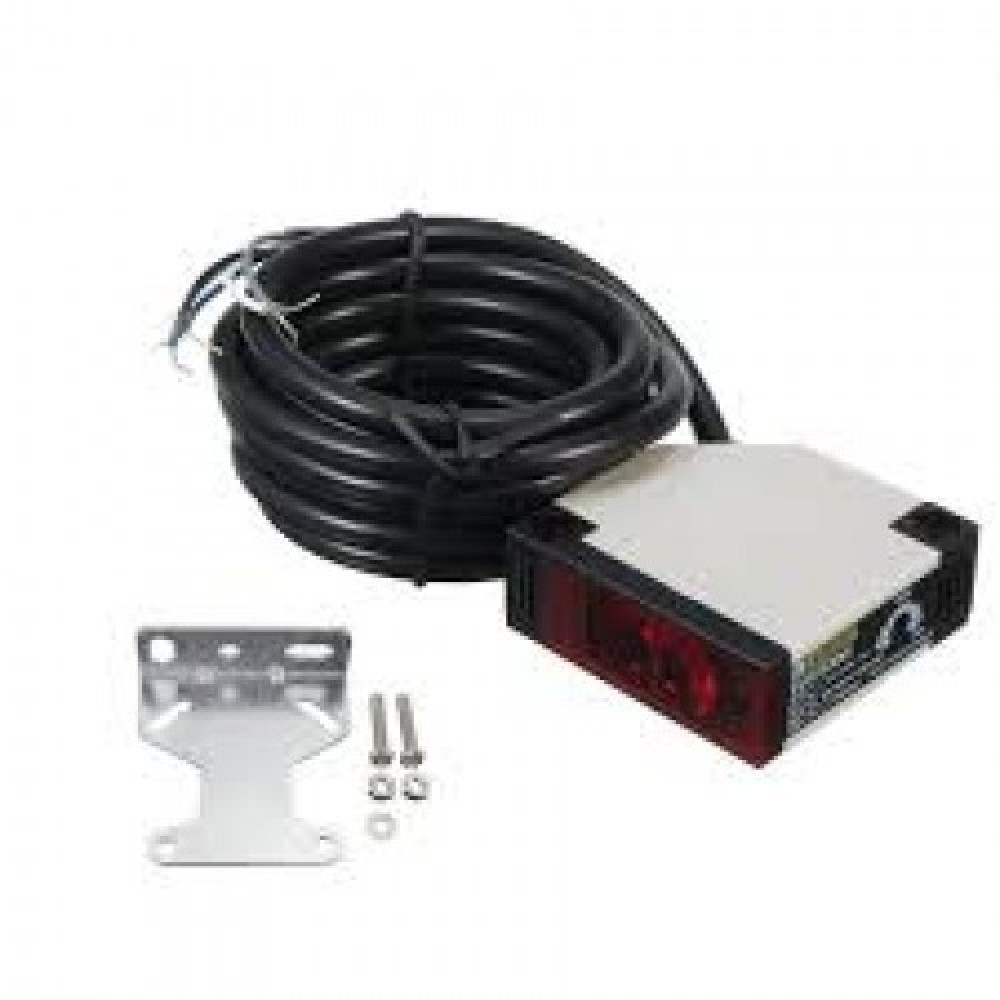

The E3JK-DS30M1 is a compact, thin-profile Photomicro sensor with a special amplifier. The device is provided with two operation indicators, enabling monitoring from the amplifier housing and sensor head.

Slim amplifier (50 × 7.5 × 12mm) can be handled like a cable

Simple wiring with a 3-conductor cable

Through-beam type sensing method

300mm Sensing distance

NPN output

Dark-ON output configuration

2m Cable length

0.5m Cable length from emitter to an amplifier
