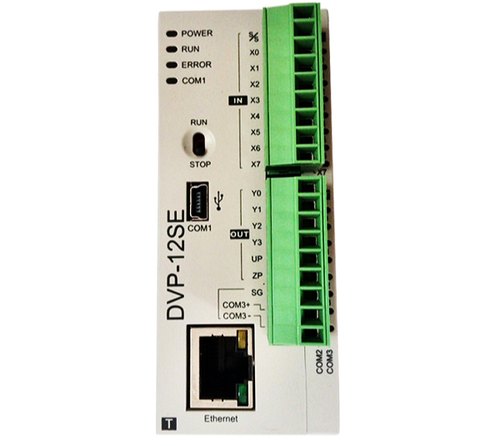

Delta PLC (DVP12SE11R)

Introduction

The Delta PLC (DVP12SE11R) is a Programmable Logic Controller. It is from the Delta DVP SE series, which is manufactured by Delta Electric. The origin of the Delta PLC (DVP12SE11R) is China. In Bangladesh, industry, and factory need a lot of Delta PLC (DVP12SE11R). This is needed for the purpose of the Automation system. The Delta programmable controller is used for controlling machine. It also helps to run together electrical and mechanical processes. In an industry and factory, the Delta PLC (DVP12SE11R) checks the input device, produces output based on the custom program. That custom program was given to the Delta PLC (DVP12SE11R).

Description of this Product

The DVP SE series is a high-performance programmable controller from Delta Electric. The Delta PLC (DVP12SE11R) is the most efficient PLC. It has incorporate capabilities. There is an advantage. The advantage is, it includes a lot of built-in convenient instructions for simple operation access and communication function monitoring. The Delta PLC (DVP12SE11R) have module type expansion units. This expansion unit saves a lot of space. There is no need to install extra devices besides Delta PLC (DVP12SE11R) programmable controller. The Delta PLC (DVP12SE11R) high performance and widespread I/O points represent a big solution for machine control and Industrial Automation.

The Delta PLC (DVP12SE11R) programmable controller adopts a 32-bit CPU. On the right side of this Delta Programmable Logic Controller, it is possible to a clip-on extension module. There are plug-in terminals for comport of wiring and maintenance. The mounting type of this Delta PLC (DVP12SE11R) is DIN-Rail mounting. It has dual communication ports. These communication ports are RS-232 and RS-485  MODBUS ASCII/RTU compatible. The Ladder programming language used in this Delta PLC (DVP12SE11R) programmable logic controller.

The DVP12SE11R is the most complete PLC in the industry. The Delta PLC DVP12SE11R consists of 8 Digital Inputs and 4 Digital Outputs. The Type of this Output is Relay type.

Specifications for this Product

Parameter	Value
Manufacturer	Delta Electric
Series	DVP SE Series
Model	DVP12SE11R
Power Supply	24V DC
Number of Inputs	8
Type of Input	Digital
Number of Outputs	4
Type of Output	Relay
Inrush Current	Max. 7.5 A at 4 V DC
Fuse Capacity	2.5A or 30V DC
Power consumption	1.8W
Insulation Resistance	Greater than 5 M Ohm
Expandable Up to	512 Input, Output Points
Communications	Ethernet, USB
Embedded Ethernet	Yes
Minimum Operating Temperature	0°C
Maximum Operating Temperature	55°C

Item Condition:  New
