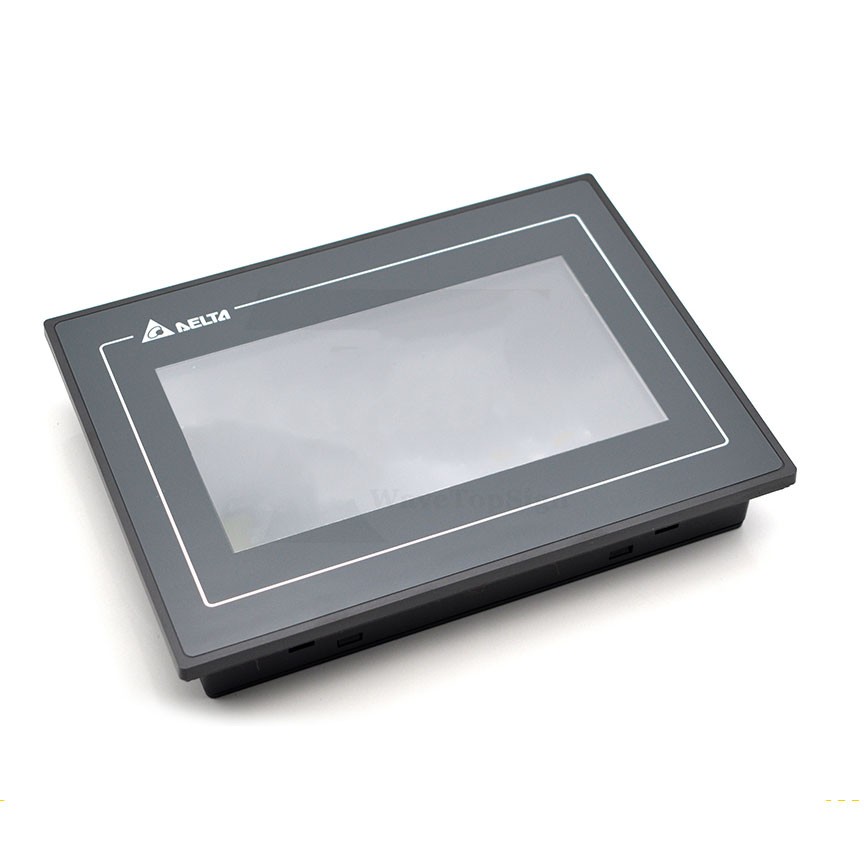

Delta HMI 5 DOP-B05S100

Product Name: Delta HMI 4.3 inch (Touch Screen)

Brand Name: Delta

Series: DOP-B Series

Model:  DOP-B05S100

Programming Software: DOP-Soft

PC to DOP-B Series HMI Communication Cable: Printer Cable

Made in Taiwan

One Years Warranty

5.6″ (320 x 234 pixels) TFT LCD 65536 colors
3 sets of COM ports, support RS232 / RS422 / RS485
For data transfer/download: RS232, USB
Supports USB Host, direct connection to USB disk, printer, and mouse
Touch screen complies with IP65
Supports horizontal/vertical display
Editing software, DOPSoft is compatible with operating systems: Windows XP, Windows Vista, Windows 7

DOP-B Series

The DOP Series Human Machine Interface (HMI) provides various touch screens with multiple dimensions and colors. It also offers fast and convenient control functions for industrial automation machines. In addition, Delta Windows-based and user-friendly DOPSoft Screen Editor and Programming Software configure the whole DOP Series. With DOPSoft, users can quickly edit images and graphs and easily set suitable communication protocols. More applications can be created, edited, downloaded, and uploaded.
